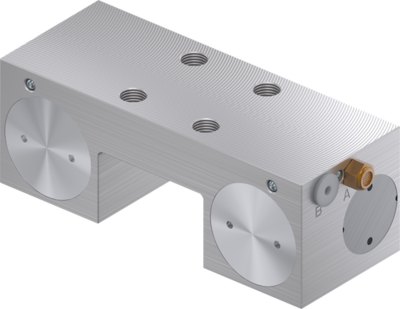

CLAMPING ELEMENTS MK Series
คำอธิบาย
CLAMPING ELEMENTS | PNEUMATIC
SERIES MK
| Order-No. |
Holding force |
Nominal operating pressure |
Installation direction |
|
| MK1201A |
350 [N] |
6 [bar] |
from above |
|
| MK1501-300 |
650 [N] |
6 [bar] |
from above |
|
| MK1501E |
650 [N] |
6 [bar] |
from the front |
|
| MK1502K |
650 [N] |
6 [bar] |
from above |
|
| MK1503BM |
650 [N] |
6 [bar] |
from the front |
|
| MK1504F |
650 [N] |
6 [bar] |
from the front |
|
| MK1514D |
650 [N] |
6 [bar] |
from the front |
|
| MK1501A |
650 [N] |
6 [bar] |
from above |
|
| MK1502KB |
650 [N] |
6 [bar] |
from above |
|
| MK1505AK |
650 [N] |
6 [bar] |
from the front |
|
| MK1505G |
500 [N] |
6 [bar] |
from above |
|
| MK1510B |
650 [N] |
6 [bar] |
from the front |
|
| MK1512I |
550 [N] |
6 [bar] |
from the front |
|
| MK1501S |
650 [N] |
6 [bar] |
from the front |
|
| MK1505A |
|
|
|
|
| MK1701B |
350 [N] |
6 [bar] |
from above |
|
| MK2001A |
1000 [N] |
6 [bar] |
from above |
|
| MK2001E |
1000 [N] |
6 [bar] |
from the front |
|
| MK2001G |
650 [N] |
6 [bar] |
from above |
|
| MK2002K |
1000 [N] |
6 [bar] |
from above |
|
| MK2002KB |
1000 [N] |
6 [bar] |
from above |
|
| MK2003BM |
1000 [N] |
6 [bar] |
from the front |
|
| MK2004F |
1000 [N] |
6 [bar] |
from the front |
|
| MK2010B |
1000 [N] |
6 [bar] |
from the front |
|
| MK2012F |
1000 [N] |
6 [bar] |
from the front |
|
| MK2014D |
700 [N] |
6 [bar] |
from above |
|
| MK2005A |
1000 [N] |
6 [bar] |
from above |
|
| MK2005AK |
1000 [N] |
6 [bar] |
from the front |
|
| MK2005G |
700 [N] |
6 [bar] |
from above |
|
| MK2005KB |
650 [N] |
6 [bar] |
from the front |
|
| MK2005KN |
650 [N] |
6 [bar] |
from the front |
|
| MK2012I |
1000 [N] |
6 [bar] |
from the front |
|
| MK2501-1000 |
1200 [N] |
6 [bar] |
from above |
|
| MK2501E |
1200 [N] |
6 [bar] |
from the front |
|
| MK2501G |
1200 [N] |
6 [bar] |
from above |
|
| MK2501N |
1200 [N] |
6 [bar] |
from above |
|
| MK2502K |
1200 [N] |
6 [bar] |
from above |
|
| MK2502KB |
1200 [N] |
6 [bar] |
from above |
|
| MK2502R |
1200 [N] |
6 [bar] |
from the front |
|
| MK2503B |
1200 [N] |
6 [bar] |
from the front |
|
| MK2503MR |
1200 [N] |
6 [bar] |
from the front |
|
| MK2512F |
1200 [N] |
6 [bar] |
from the front |
|
| MK2514D |
1200 [N] |
6 [bar] |
from above |
|
| MK-NICHT-MOEGLICH |
|
|
|
|
| MK2514E |
1200 [N] |
6 [bar] |
from the front |
|
| MK2505KN |
1200 [N] |
6 [bar] |
from the front |
|
| MK2501A |
1200 [N] |
6 [bar] |
from above |
|
| MK2505A |
1200 [N] |
6 [bar] |
from above |
|
| MK2505AK |
1200 [N] |
6 [bar] |
from the front |
|
| MK2505AR |
1200 [N] |
6 [bar] |
from the front |
|
| MK2505G |
800 [N] |
6 [bar] |
from above |
|
| MK2505KB |
1200 [N] |
6 [bar] |
from the front |
|
| MK2512I |
1200 [N] |
6 [bar] |
from the front |
|
| MK2501S |
1200 [N] |
6 [bar] |
from the front |
|
| MK2101B |
650 [N] |
6 [bar] |
from above |
|
| MK2701B |
1000 [N] |
6 [bar] |
from above |
|
| MK3001A |
1750 [N] |
6 [bar] |
from above |
|
| MK3001E |
1200 [N] |
6 [bar] |
from the front |
|
| MK3001G |
1750 [N] |
6 [bar] |
from above |
|
| MK3002K |
1750 [N] |
6 [bar] |
from above |
|
| MK3002KB |
1750 [N] |
6 [bar] |
from above |
|
| MK3003BM |
1750 [N] |
6 [bar] |
from the front |
|
| MK3004F |
1200 [N] |
6 [bar] |
from the front |
|
| MK3012F |
1200 [N] |
6 [bar] |
from the front |
|
| MK3005A |
1750 [N] |
6 [bar] |
from above |
|
| MK3014E |
1200 [N] |
6 [bar] |
from the front |
|
| MK3005AK |
1750 [N] |
6 [bar] |
from the front |
|
| MK3005G |
1200 [N] |
6 [bar] |
from above |
|
| MK3012I |
1200 [N] |
6 [bar] |
from the front |
|
| MK3003MR |
1200 [N] |
6 [bar] |
from the front |
|
| MK3001S |
1200 [N] |
6 [bar] |
from the front |
|
| MK3501A |
2000 [N] |
6 [bar] |
from above |
|
| MK3501E |
2000 [N] |
6 [bar] |
from the front |
|
| MK3501G |
1750 [N] |
6 [bar] |
from above |
|
| MK3502K |
2000 [N] |
6 [bar] |
from above |
|
| MK3502KB |
2000 [N] |
6 [bar] |
from above |
|
| MK3503BM |
2000 [N] |
6 [bar] |
from the front |
|
| MK3503MR |
2000 [N] |
6 [bar] |
from the front |
|
| MK3504F |
2000 [N] |
6 [bar] |
from the front |
|
| MK3512F |
2000 [N] |
6 [bar] |
from the front |
|
| MK3514D |
2000 [N] |
6 [bar] |
from above |
|
| MK3514E |
2000 [N] |
6 [bar] |
from the front |
|
| MK3505A |
2000 [N] |
6 [bar] |
from above |
|
| MK3501-1000 |
2000 [N] |
6 [bar] |
from above |
|
| MK3502D |
2000 [N] |
6 [bar] |
from the front |
|
| MK3505AK |
2000 [N] |
6 [bar] |
from the front |
|
| MK3505AR |
2000 [N] |
6 [bar] |
from the front |
|
| MK3505G |
1400 [N] |
6 [bar] |
from above |
|
| MK3505KB |
2000 [N] |
6 [bar] |
from above |
|
| MK3512I |
2000 [N] |
6 [bar] |
from the front |
|
| MK3501F |
2000 [N] |
6 [bar] |
from above |
|
| MK3501B |
1200 [N] |
6 [bar] |
from above |
|
| MK4501-1000 |
2250 [N] |
6 [bar] |
from above |
|
| MK4501A |
2250 [N] |
6 [bar] |
from above |
|
| MK4501E |
2250 [N] |
6 [bar] |
from the front |
|
| MK4502E |
2250 [N] |
6 [bar] |
from the front |
|
| MK4502K |
2250 [N] |
6 [bar] |
from above |
|
| MK4502R |
2250 [N] |
6 [bar] |
from the front |
|
| MK4503BM |
2250 [N] |
6 [bar] |
from the front |
|
| MK4503MR |
2250 [N] |
6 [bar] |
from the front |
|
| MK4504F |
2250 [N] |
6 [bar] |
from the front |
|
| MK4512F |
2250 [N] |
6 [bar] |
from the front |
|
| MK4514D |
2250 [N] |
6 [bar] |
from above |
|
| MK4505A |
2250 [N] |
6 [bar] |
from above |
|
| MK4514E |
2250 [N] |
6 [bar] |
from the front |
|
| MK4501F |
2250 [N] |
6 [bar] |
from above |
|
| MK5001B |
2000 [N] |
6 [bar] |
from above |
|
| MK5501F |
2250 [N] |
6 [bar] |
from the front |
|
| MK5501SR |
2250 [N] |
6 [bar] |
from above |
|
| MK5502K |
2250 [N] |
6 [bar] |
from above |
|
| MK5502R |
2250 [N] |
6 [bar] |
from the front |
|
| MK5503MR |
2250 [N] |
6 [bar] |
from the front |
|
| MK5504F |
2250 [N] |
6 [bar] |
from the front |
|
| MK5514C |
1450 [N] |
6 [bar] |
from above |
|
| MK5515A |
2250 [N] |
6 [bar] |
from the front |
|
| MK5514E |
2250 [N] |
6 [bar] |
from the front |
|
| MK5501A |
2250 [N] |
6 [bar] |
from above |
|
| MK5505AK |
2250 [N] |
6 [bar] |
from the front |
|
| MK5505AR |
2250 [N] |
6 [bar] |
from the front |
|
| MK6501-1000 |
2250 [N] |
6 [bar] |
from above |
|
| MK6501A |
2250 [N] |
6 [bar] |
from above |
|
| MK6501E |
2250 [N] |
6 [bar] |
from the front |
|
| MK6501N |
2250 [N] |
6 [bar] |
from above |
|
| MK6502R |
2250 [N] |
6 [bar] |
from above |
|
| MK6503MR |
2250 [N] |
6 [bar] |
from the front |
|
| MK6504F |
2250 [N] |
6 [bar] |
from the front |
|
| MK6512F |
2250 [N] |
6 [bar] |
from the front |
|
| MK6501F |
2250 [N] |
6 [bar] |
from the front |
|
| MK6514E |
2250 [N] |
6 [bar] |
from the front |
|
| MK6505AK |
2250 [N] |
6 [bar] |
from the front |
|
| MK6505AR |
2250 [N] |
6 [bar] |
from the front |
|
| MK6505A |
2250 [N] |
6 [bar] |
from above |
|
| MK4510B |
2250 [N] |
6 [bar] |
from the front |
|
| MK4505AK |
2250 [N] |
6 [bar] |
from the front |
|
| MK4505AR |
2250 [N] |
6 [bar] |
from the front |
|
| MK4505G |
1600 [N] |
6 [bar] |
from above |
|
| MK8501A |
2250 [N] |
6 [bar] |
from above |
